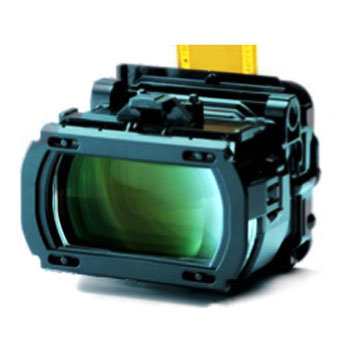

Full HD Eyepiece Display Module
High Definition 1920*1080 OLED Display Virtual Image Size:750" in 20m distance HDSDI or HDMI directly input Ideal in electronic viewfinders(EVF)High Definition

ST-DM2K is the industry¡¯s first ultra-small 1920*1080 High Definition Color OLED display Module. ATST has made available the wide color gamut, high contrast and fast response of OLED display in a diagonal 0.7-type HD version. With directly input of HDSDI video signal, you can get a Virtual Image Size:750" in 20m distance

The module can be integrated into either monocular or binocular systems. This advanced display module is well suited for Military (Helmet/Head mounted display systems), weapon sights, medical, training & simulation and virtual reality applications.

**Benefits:
Lower Power Consumption means fewer batteries and long time in the field. Wider Viewing Angle and Greater Contrast Ratio and Faster Response Time enable instant on and smoother motion and reduces eye fatigue and headaches HDSDI video signal directly input means the camera and the Head Mounted Display could be connected by a HD-SDI video cable.

Specifications:

Display: Virtual Image Size	750" in 20m distance
Display: Gradation	RGB 24bit
Display: Field of View	45 degree
Display: Aspect Ratio	16:09
Display: Device	OLED Panel
Contrast ratio	10000:1
Fast response	0.01ms or less
Brightness	Max 200cd/m2
Display: Resolution	1920*1080x3
HDSDI Input format	FHD-59.94/60Hz, FHD-50Hz,                                       FHD-47.952/48Hz
Power Consumption	5W
Power Voltage	DC5V
Dimensions	47mmW x 45mmH x 29mmD
Weight	31g
