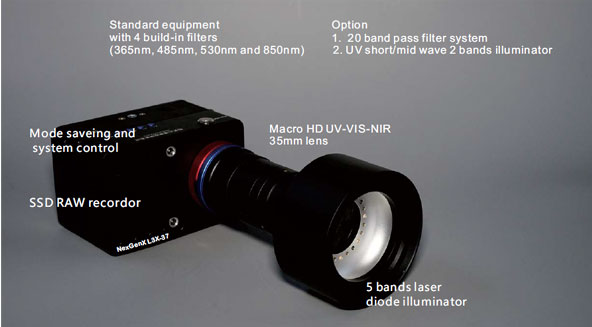

NexGenX L3X-37

Model No. : ST2999

The world's first IL3 camera optimized for ultra-violet response. The high Quantum Efficiency(QE) provides UV sensitivity comparable to expensive, scientific grade CCD cameras.

The world’s first UV-VIS-IR chromatically corrected 2 Mega Pixel HD lens

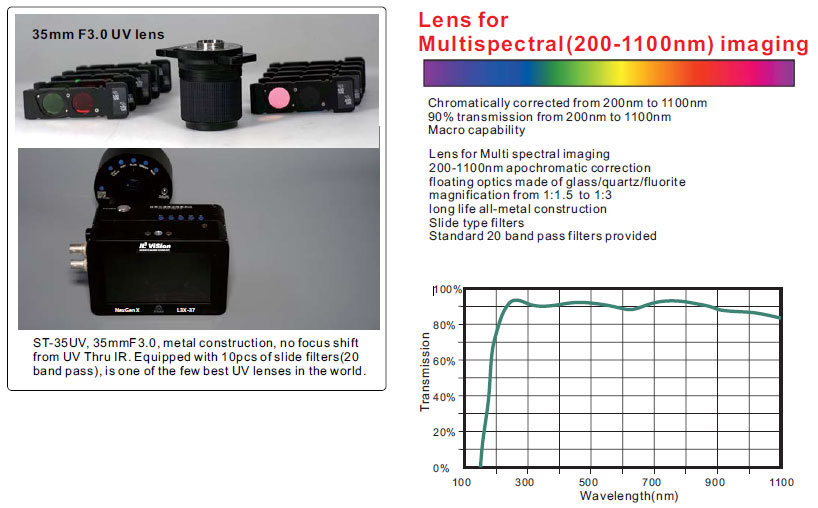

ST-35UV a new 35mm 1:3.0 Apo Macro high performance UV-VIS-IR lens for forensics, science, and fine art in CS or C Mount, covers a wavelength range of 200-1100nm.

This lens sports an advanced floating element design for excellent close-up reproduction up to 1:1.5 magnification and consists of 8 lens elements. The chromatic error in the 200-1100nm range is virtually zero.

The design covers a one inch format which would make it suitable for most of the UV capable cameras in the market.

Applications

1. Forensic: fingerprint imaging, documents checking
2. UV microscopy, UV laser beam diagnostics
3. Semiconductor: wafer inspection and mask alignment
4. Electronics: solder inspection, PCB inspection
5. Medical and law enforcement imaging
6. Factory Automation: leak detection, surface inspection

**Benefits

1. No focus shift from UV through IR
2. Metal construction ensures long life
3. Filters could be changed easily by the filter slide
4. More than 20 kinds of band pass filters equipped
